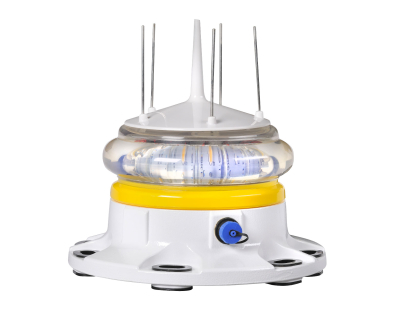

Sealite – Stand Alone Marine Lantern SL-155 Series 6-13NM+

Sealite – Stand Alone Marine Lantern SL-155 Series 6-13NM+

SL-155 Series — SL-155-2.5D, SL-155-5D & SL-155-10D

The SL-155 Series are 6-13NM medium range marine lanterns, available in 2.5, 5, or 10 degree vertical distributions. A Wreck Light lantern to meet IALA recommendation 0-133 for temporary marking of danger or hazards is also available.

Features

  • Over 10,000cd luminous intensity white
  • Compact single tier lantern up to 13NM visible range
  • Multiple user-adjustable intensity settings
  • 310 standard flash codes plus custom character
  • PC or IR Programmer for setup, diagnostic & testing
  • Internal or external photocell options
  • User configurable day/night lux levels
  • Advanced remote monitoring features
  • Wide operating voltage range 10-30VDC
  • Internal data-logging for long term retention of key operational parameters & alarm conditions
  • Hardwire synchronisation supporting RS485 & RS422
  • General purpose inputs (two) & outputs (two)
  • Heavy-duty aluminium base

Options

  • GPS synchronisation
  • GSM monitoring & control
  • Type 1 or Type 3 AIS class leading, integrated & low-powered
  • RS232/422/485 port
  • Hard-wire synchronisation
  • Serial programming cable
  • Variety of solar/battery configurations

Certifications

  • CE & Electrical: FCC Part 15 Rules & ICES-003. EN61000-6-1: 2007 (IEC61000-6-1:2005) Part 6-1 Immunity. EN61000-6-3: 2007 (IEC61000-6-3: 2006) Electromagnetic compatibility (EMC) – Part 6-3 Emission. IEC61000-4-2: 2008 Ed 2 Part 4-2 Electrostatic discharge immunity test Level 4. IEC61000-4-3: 2010 Ed 3.2 Part 4-3. Radiated, radio frequency, electromagnetic field immunity. IEC61000-4-6: 2008 Ed3. , Electromagnetic
  • IALA: signal colours compliant to IALA E-200-1
  • Quality Assurance: ISO 9001:2015
  • Waterproof: IP68

Downloads

Download Data Sheets
