Features
- Excellent buoyancy and stability.
- Optional top section with extended focal height.
- Double lifting and mooring eye.
- Easy assembly and installation.
- 316-grade tie in bars provide outstanding strength.

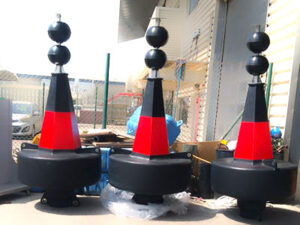

Navigation Buoy TM1200
North West Marine offers an extensive portfolio of navigation buoys designed in compliance with strict quality standards and validated by a strong history of reliability. Tritonbuoys has developed a diverse selection of navigation buoys that adhere to rigorous quality standards and boast a proven track record of reliability. Each buoy is crafted from premium UV-stabilized virgin polyethylene and filled with closed-cell polyurethane to prevent water ingress if the outer layer is damaged. This design ensures exceptional performance and long-lasting durability.

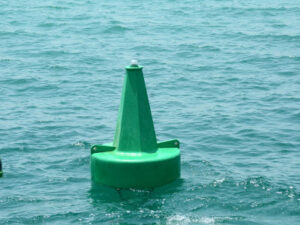

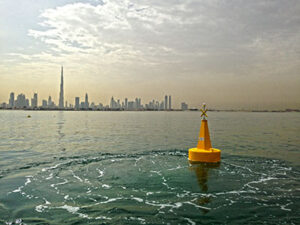

The Tritonbuoys navigation buoy TM1200 is an extremely robust high visibility 1200mmm diameter navigational buoy perfect for a variety of installations including lateral marking, barricading, special marking and cardinal marking.
Specifications
| General Characteristics | |
|---|---|
| Diameter | 1200 mm |
| Focal Plane Height | 1445 mm |
| Available Colour | Green, Red, Yellow, White as per IALA recommendations; Customisation Available |
| Total Float Volume | 590 L / Excluding top section |
| Nominal Freeboard | 415 mm |
| Nominal Draft | 475 mm |
| Total Reserve Buoyancy | 464 kg |
| Operational Buoyancy | 285 kg |
| Maximum Mooring Load | 285 kg |
| Freeboard, Minimum | 215 mm |
| Draft, Maximum | 675 mm |
| Visual/Focal Area | 0.85 m2 |
| Physical Characteristics | |
| Material | Rotationally-Moulded UV Stabilized Virgin Polyethylene |
| Wall Thickness | 9 mm Buoy Section; 7 mm Top Section |
| Ballast (Internal Concrete) | 60 kg (Customisable) |
| Filling | Closed cell Polyurethane (Density > 45 kg/m3) |
| Total Height | 1800 mm / 2100 mm Extended Version |
| Width | 1200 mm |
| Mass | 145 kg (including internal ballast) |
| Certifications | |
| IALA | Surface colours compliant to IALA E-108 |
| Quality Assurance | ISO 9001:2015 |
| IP/Trademark | TRITONBUOYS® is a registered trademark |
| Additional Characteristics | |
| Warranty | 3 Years** |
| Options Available | Signage, In-Mold &/or Post Mold Stickers, Top Marks, Internal Radar Reflector, Battery Box, Navigation Lights |
| * Specifications subject to change or variation without notice ** Warranty subject to terms & conditions |
|
