Ocean Buoy ATLANTIC 2600

Ocean Buoy Atlantic-2600

2600mm dia Ocean Buoy

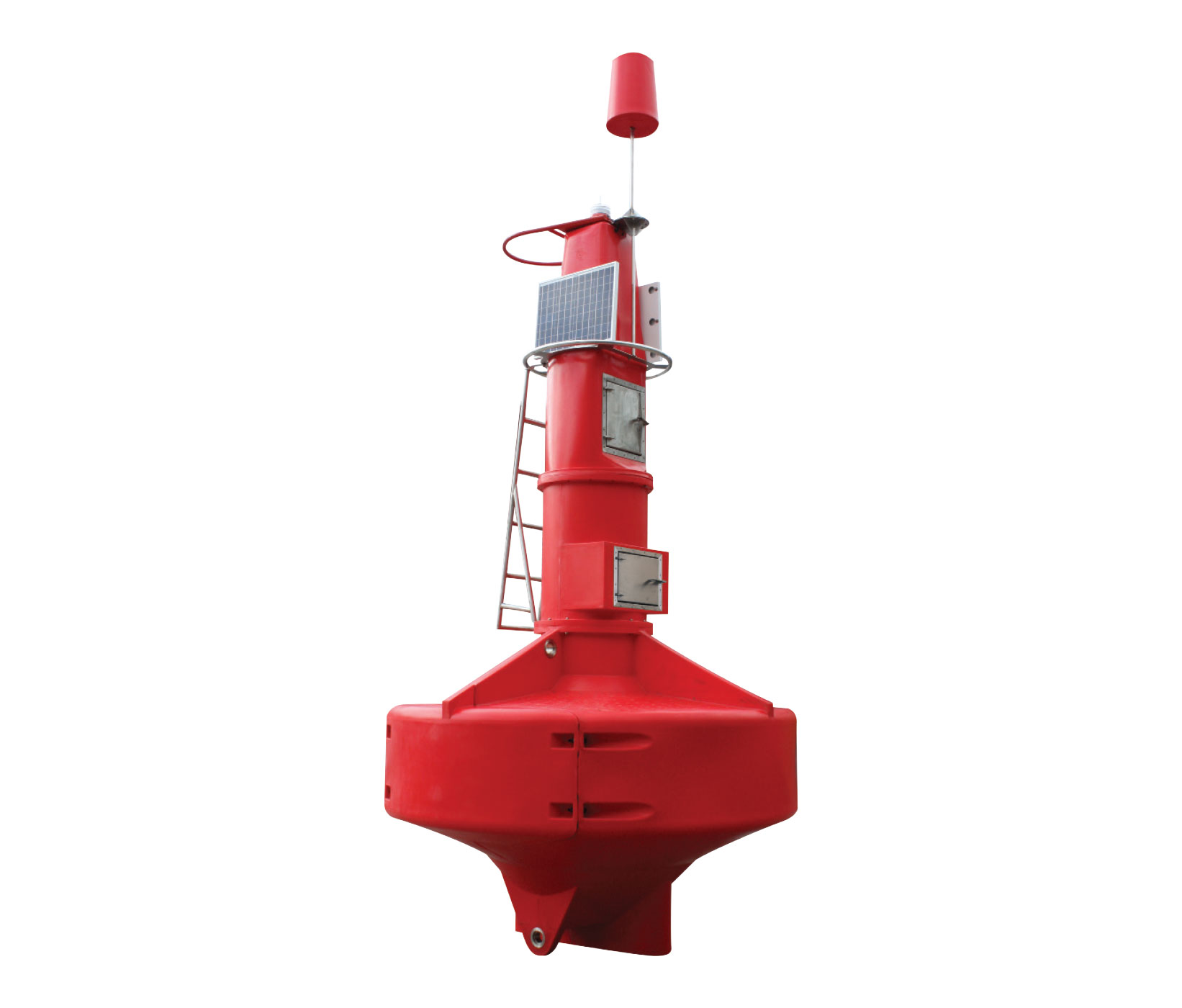

The ATLANTIC-2600 is a 2.6mtr diameter navigation buoy designed for offshore port and coastal applications.

The buoy is rotationally-moulded by Sealite from UV-stabilised virgin polyethylene, and has a 2.6mtr float diameter and 4.1mtr lantern focal height.
The ATLANTIC-2600 is built in a 5-part modular design and can be setup in any IALA recommended assembly.
Twin lifting and mooring eyes are interconnected by stainless steel tie bars through the hull structure – offering enormous strength and superior longevity of the navaid.

The ATLANTIC buoy is the only buoy in its class to offer a large 2.6mtr diameter float section without the incorporation of a central mooring post. This provides enormous user benefits, including; Faster, easier to assemble – the ATLANTIC-2600 buoy is delivered almost ready to deploy Lightweight – up to 60% lighter than competitor models Single, rotationally-moulded main float section All stainless steel fittings The hull section of the ATLANTIC-2600 has detachable side panels that are designed to be removed during transport, allowing the buoy to be conveniently transported in a shipping container. This provides the benefits of an extraordinarily large float section, without the need for a heavy, steel mooring-post.

FEATURES

  • 2.6mtr diameter & up to 4.1 metre focal height
  • Able to be transported globally in a standard shipping container
  • 316-grade stainless steel, moulded-in tie bars provide outstanding lifting strength
  • High visibility red, green, white or yellow as per IALA recommendations
  • Excellent buoyancy & stability
  • Easy to deploy & service
  • No painting, ever
  • Cost effective & environmentally friendly

Options

  • Mould-in graphics
  • Day marks
  • Monitoring systems (AIS, GSM)
  • Mooring solutions available include chain or synthetic, hardware and sinkers

Certifications

  • IALA: Surface colours compliant to IALA E-108
  • Quality Assurance: ISO9001:2015
