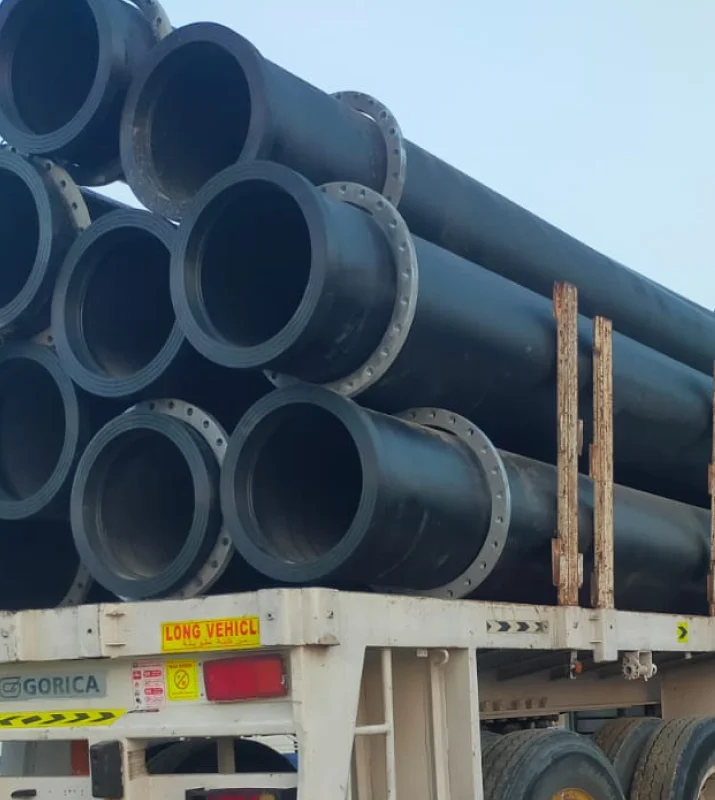

Dredging Pipes

Tritonbuoys manufacture a range of dredging pipes made from high-density polyethylene (HDPE). These pipes are designed to meet the rigorous demands of dredging operations, offering superior durability, flexibility and resistance to abrasion and impact. The high-density polyethylene material ensures that our dredging pipes are lightweight yet strong, providing exceptional performance and longevity even in challenging conditions.

Features

  1. Corrosion and uv resistant.
  2. Easy installation.
  3. High impact resistance.
  4. Some natural buoyancy

Specifications

Inner Diameter (in millimeters)
Pressure TestingPN6.3PN8PN10PN12.5PN16
OD (mm)OD (“)SDR26SDR21SDR17SDR13.6SDR11
1104101.699.496.893.890
1606147.6144.6141136.4130.8
2008184.6180.8176.2170.6163.6
2258207.8203.4198.2191.8184
25010230.8226.2220.4213.2204.6
28010258.6253.2246.8238.8229.2
31512290.8285277.6268.6257.8
35514327.8321.2312.8302.8290.6
40016369.4361.8352.6341.2327.4
45018415.6407396.6383.8368.2
50020461.8452.2440.6426.4409.2
56022517.2506.6493.6477.6458.4
63026581.8570555.2537.4515.6
71028655.6642.2625.8605.6581.3
80032738.8723.8705.2682.4
90036831.2814.2793.4767.8

* Specifications subject to change or variation without notice
** Warranty subject to terms & conditions
