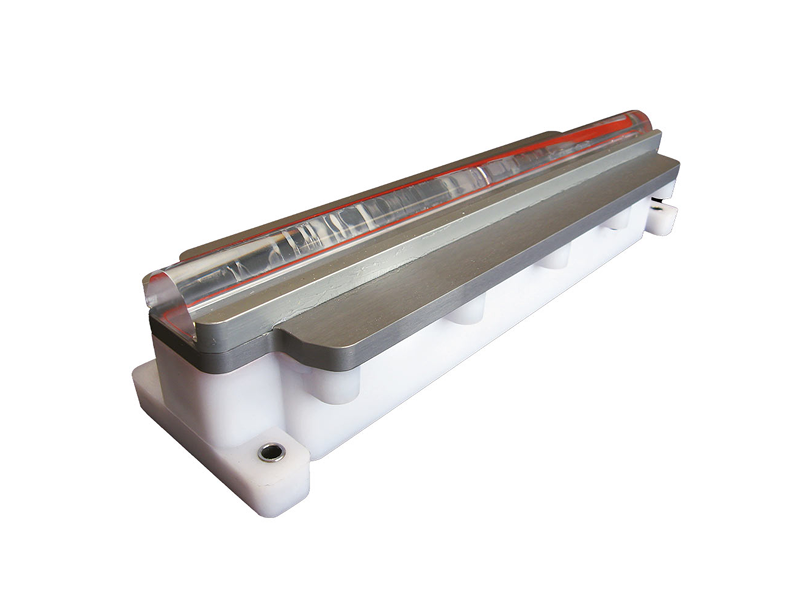

Sabik – VLL-43 Linear Lead Light

With a range of 13 NM to 22 NM at 0.74 T, the VLL-43 Linear Lead Light is a powerful unidirectional light ideal for marking short distances and obstacles. Its optical system utilizes an acrylic lens to effectively capture and project light from high-powered LEDs. These LEDs are carefully graded and positioned to create a beam with minimal variation in intensity. Multiple units can be deployed to achieve the desired range, with each unit featuring its own control board for individual operation.

Features

  • Separate intensity settings for day and night
  • Nine night/day transition settings
  • Up to 246 standard flash characters and one programmable custom character
  • Wired synchronization with master/slave options and adjustable delay (0.1 to 9.9 seconds)
  • Battery low voltage cut-off and optional PIN code for programming
  • External GNSS synchronization with VSU-29 unit
  • Automatic Schmidt-Clausen intensity correction

Downloads

Download Data Sheets
