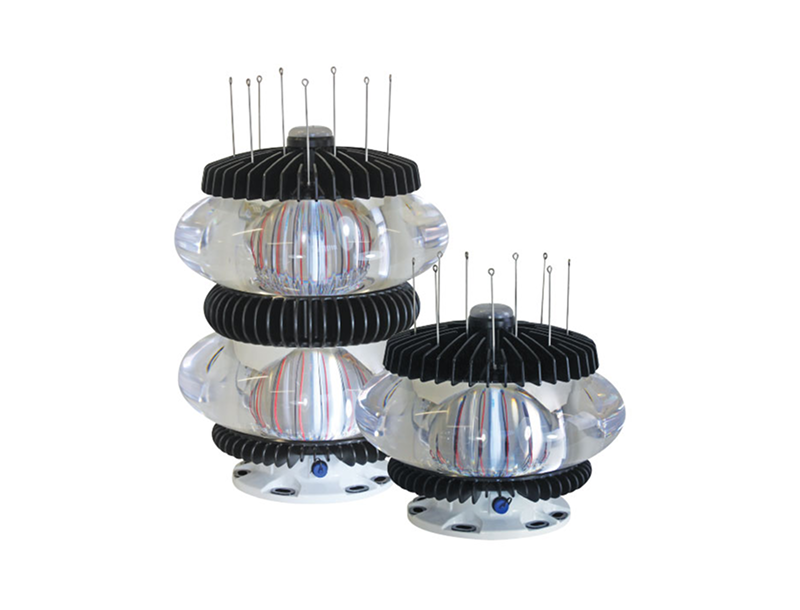

SL-300 Series — SL-300-1D5-1 & SL-300-1D5-2

The SL-300-1D5 series are 13 to 21NM long range marine lanterns with 1.5 degree vertical distribution, suitable for a range of day and night applications

Features

Over 90,000cd luminous intensity white single tier
Over 180,000cd luminous intensity white two tier
Compact lantern up to 21NM visible range
PC or IR Programmer for setup, diagnostic & testing
Internal or external photocell options
User configurable day/night lux levels
Advanced remote monitoring features
Wide operating voltage range 20 58VDC
Internal data-logging for long term retention of key operational parameters & alarm conditions
General purpose inputs (two) & outputs (two)

Options

GPS Synchronisation
Integrated to external Type 1 or Type 3 AIS
GSM Monitoring & Control System
RS232/422/485 Port
General purpose inputs (2) & outputs (2)
Variety of solar/battery configurations
Bird deterrent spikes
Serial programming cable

Certifications

Immunity: EN 61000-6-1: 2007 (IEC61000-6-1: 2005)
Emission: EN 61000-6-4: 2007 (IEC 61000-6-4: 2006) + A1: 2001
FCC Part 15 Rules: IFCC Part 15 Subpart B
IALA: Signal colours compliant to IALA E-200-1
Quality Assurance: ISO 9001:2015

Downloads

Download Data Sheets
