Features
- Excellent buoyancy and stability.
- Sturdy construction.
- Range of sizes available.
- Easy assembly and installation.
North West Marine offers an extensive portfolio of navigation buoys designed in compliance with strict quality standards and validated by a strong history of reliability. Tritonbuoys has developed a diverse selection of mooring buoys that adhere to rigorous quality standards and boast a proven track record of reliability. Each buoy is manufactured from premium UV-stabilized virgin polyethylene and filled with closed-cell polyurethane to prevent water ingress in the event of damage.

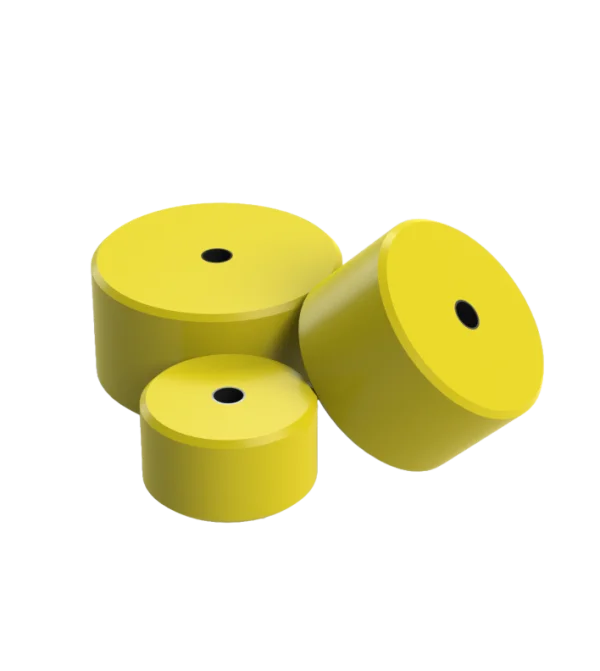

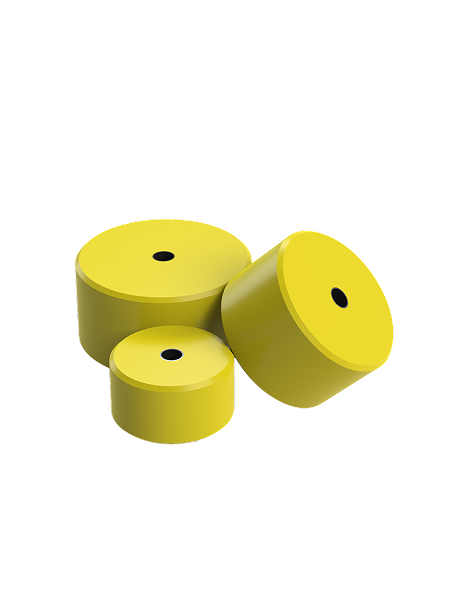

Tritonbuoys mooring buoys feature a robust molded center pipe, specifically designed to facilitate the easy installation of mooring tubes and chains. This design enhances the functionality and versatility of the buoys, making them ideal for various mooring applications.
| TMB-570 | TMB-735 | TMB-870 | |
|---|---|---|---|
| Diameter | 570 mm | 735 mm | 870 mm |
| Available Colour | Green, Red, Yellow, White as per IALA recommendations; Customisation Available. | ||
| Total Float Volume | 76 L | 178 L | 262 L |
| Nominal Freeboard | 215 mm | 325 mm | 340 mm |
| Nominal Draft | 95 mm | 105 mm | 110 mm |
| Operational Buoyancy | 22 kg | 85 kg | 120 kg |
| Draft, Maximum | 180 mm | 295 mm | 300 mm |
| Freeboard, Minimum | 130 mm | 135 mm | 150 mm |
| Physical Characteristics | |||
| Material | Rotationally-Moulded UV Stabilized Virgin Polyethylene | ||
| Wall Thickness | 7 mm | ||
| Ballast (Concrete) | 15 kg | 25 kg | 40 kg |
| Filling | Closed cell Polyurethane (Density > 45kg/m³) | ||
| Total Height | 310 mm | 430 mm | 450 mm |
| Mass | 25 kg | 42 kg | 64 kg |
| Certifications | |||
| Quality Assurance | ISO9001:2015 | ||
| Warranty | 1 Years** | ||
| IP/Trademark | TRITONBUOYS® is a registered trademark | ||
| Options Available | |||
| Custom Mooring Rod, Pickup Buoy | |||
| * Specifications subject to change or variation without notice ** Warranty subject to terms & conditions |
|||
Contact our technical team for support, pricing, and custom fabrication.
