Navigation Buoy TM 750

Navigation Buoy TM 750

North West Marine offers an extensive portfolio of navigation buoys designed in compliance with strict quality standards and validated by a strong history of reliability. Tritonbuoys has developed a diverse selection of navigation buoys that adhere to rigorous quality standards and boast a proven track record of reliability. Each buoy is crafted from premium UV-stabilized virgin polyethylene and filled with closed-cell polyurethane to prevent water ingress if the outer layer is damaged. This design ensures exceptional performance and long-lasting durability.

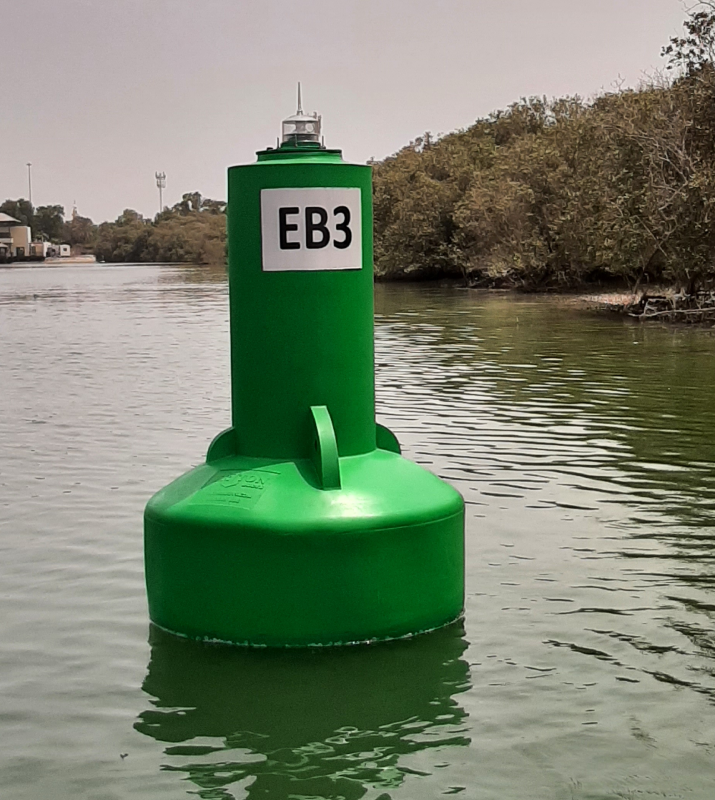

The Tritonbuoys TM750 is perfect for mooring, beach marking, marina marking, speed zones, and restricted areas. It features an enhanced mooring load, making it suitable for deployment in locations that require a heavier mooring system.

Features

Excellent buoyancy and stability.
Made from Single components.
Double lifting and single mooring eye.
Easy assembly and installation.
316-grade tie in bars provide outstanding strength.
Inbuilt Radar Reflector

Specifications

General Characteristics
Diameter	750 mm
Available Colour	Green, Red, Yellow, White as per IALA; Customisation Available
Nominal Focal Plane	1030 mm
Nominal Draft	380 mm
Maximum Mooring Load	100 kg
Total Reserve Buoyancy	250 kg
Operational Buoyancy	100 kg
Visual / Focal Area	0.48 m²
Physical Characteristics
Material	Rotationally-Moulded UV Stabilized Virgin Polyethylene
Wall Thickness	7 mm Buoy Section
Ballast (Internal Concrete)	40 kg (Customisable)
Filling	Closed cell Polyurethane (Density > 45 kg/m³)
Total Height	1400 mm
Net Weight	70 kg (including internal ballast)
Certifications
Quality Assurance	ISO 9001:2015
Warranty	1 Year
IP / Trademark	TRITONBUOYS® is a registered trademark
Options Available
Signage In-Mold &/or Post Mold Stickers Navigation Lights * Specifications subject to change or variation without notice ** Warranty subject to terms & conditions
