Navigation Buoy TM 780

North West Marine offers an extensive portfolio of navigation buoys designed in compliance with strict quality standards and validated by a strong history of reliability. Tritonbuoys has developed a diverse selection of navigation buoys that adhere to rigorous quality standards and boast a proven track record of reliability. Each buoy is crafted from premium UV-stabilized virgin polyethylene and filled with closed-cell polyurethane to prevent water ingress if the outer layer is damaged. This design ensures exceptional performance and long-lasting durability.

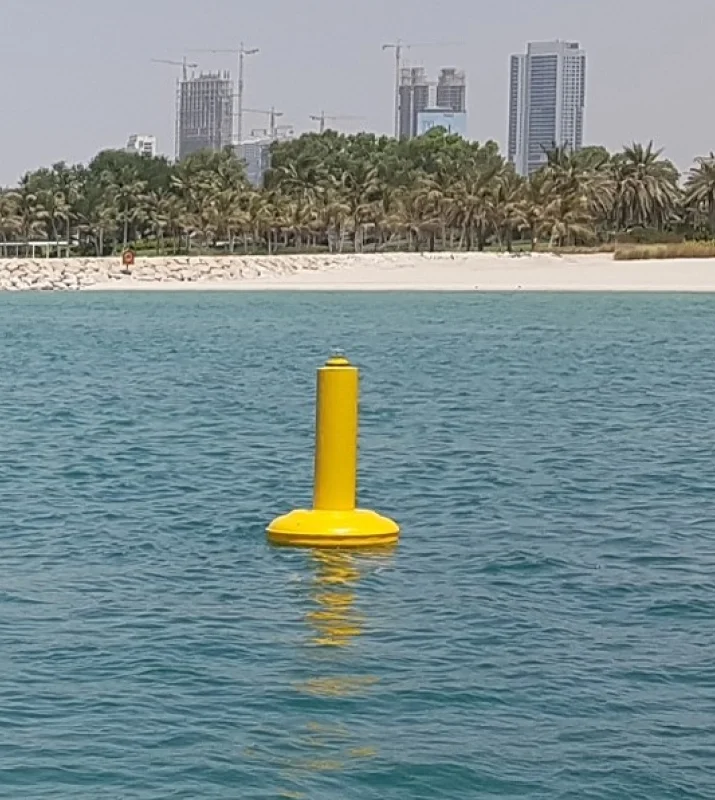

The Tritonbuoys TM780 marker buoy is a versatile solution for various needs, including lateral marking, restricted areas, special zones, and aquaculture. The TM780 is specifically designed with an increased focal height to enhance its visibility in shallow water settings.

Features

  • High visibility colours as per IALA recommendations.
  • Excellent buoyancy and stability.
  • Enhanced focal height.

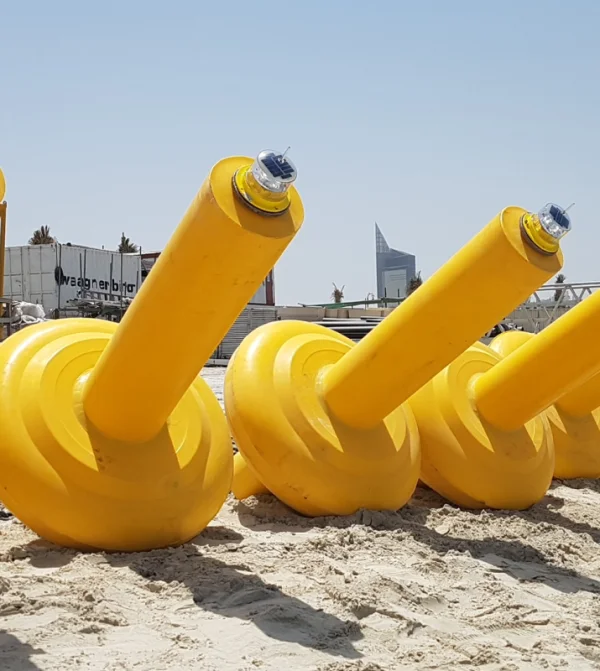

  • Navigation light mounting available.

Specifications

General Characteristics
Diameter780 mm
Available ColourGreen, Red, Yellow, White as per IALA; Customisation Available
Freeboard, Minimum234 mm
Draft, Maximum320 mm
Maximum Mooring Load60 kg
Physical Characteristics
MaterialRotationally-Moulded UV Stabilized Virgin Polyethylene
Wall Thickness7 mm Buoy Section
FillingClosed cell Polyurethane (Density > 45 kg/m3)
Total Height1500 mm
Width780 mm
Net Weight34 kg (including internal ballast)
Certifications
Quality AssuranceISO 9001:2015
Warranty1 Year**
IP/TrademarkTRITONBUOYS® is a registered trademark
* Specifications subject to change or variation without notice
** Warranty subject to terms & conditions

Downloads

Download Data Sheets
