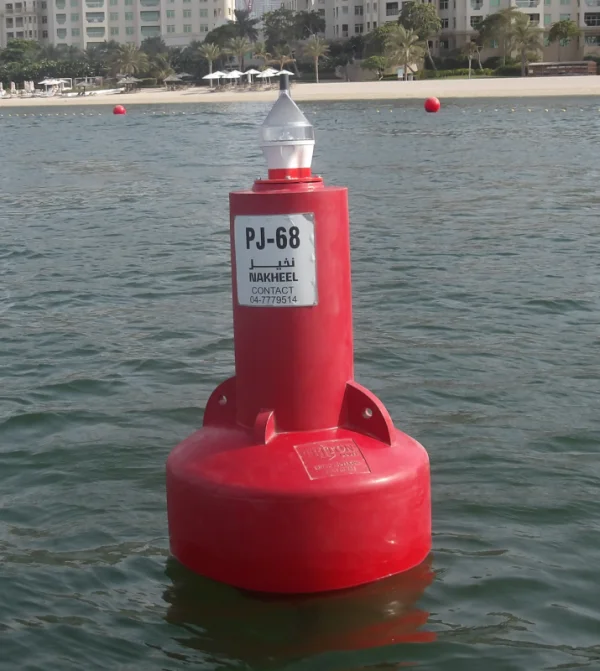

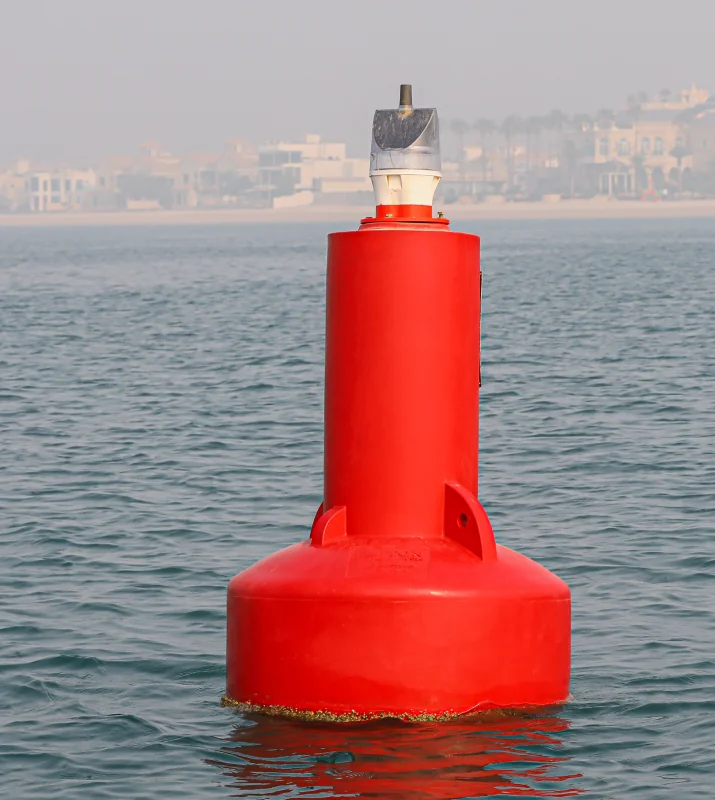

Navigation Buoy TM 900

North West Marine offers an extensive portfolio of navigation buoys designed in compliance with strict quality standards and validated by a strong history of reliability. Tritonbuoys has developed a diverse selection of navigation buoys that adhere to rigorous quality standards and boast a proven track record of reliability. Each buoy is crafted from premium UV-stabilized virgin polyethylene and filled with closed-cell polyurethane to prevent water ingress if the outer layer is damaged. This design ensures exceptional performance and long-lasting durability.

The Tritonbuoys TM900 is perfect for mooring, beach marking, marina marking, speed zones, and restricted areas. It features an enhanced mooring load, making it suitable for deployment in locations that require a heavier mooring system.

Features

  • High visibility colours as per IALA recommendations.
  • Enhanced mooring load.
  • 8mm wall thickness.
  • Navigation light mounting.

Specifications

General Characteristics
Diameter900 mm
Available ColourGreen, Red, Yellow, White as per IALA recommendations; Customisation Available
Freeboard, Minimum240 mm
Draft, Maximum445 mm
Maximum Mooring Load280 kg
Visual/Focal Area0.84 m2
Physical Characteristics
MaterialRotationally-Moulded UV Stabilized Virgin Polyethylene
Wall Thickness8 mm Buoy Section
Ballast (Internal Concrete)60 kg (Customisable)
FillingClosed cell Polyurethane (Density > 45 kg/m3)
Total Height1900 mm
Net Weight118 kg (including internal ballast)
Certifications
Quality AssuranceISO 9001:2015
Warranty1 Year**
IP/TrademarkTRITONBUOYS® is a registered trademark
Options Available
SignageAvailable
In-Mold &/or Post Mold StickersAvailable
Navigation LightsAvailable
* Specifications subject to change or variation without notice
** Warranty subject to terms & conditions
