Navigation Buoy TM-B1500

North West Marine offers an extensive portfolio of navigation buoys designed in compliance with strict quality standards and validated by a strong history of reliability. Tritonbuoys has developed a diverse selection of navigation buoys that adhere to rigorous quality standards and boast a proven track record of reliability. Each buoy is crafted from premium UV-stabilized virgin polyethylene and filled with closed-cell polyurethane to prevent water ingress if the outer layer is damaged. This design ensures exceptional performance and long-lasting durability.

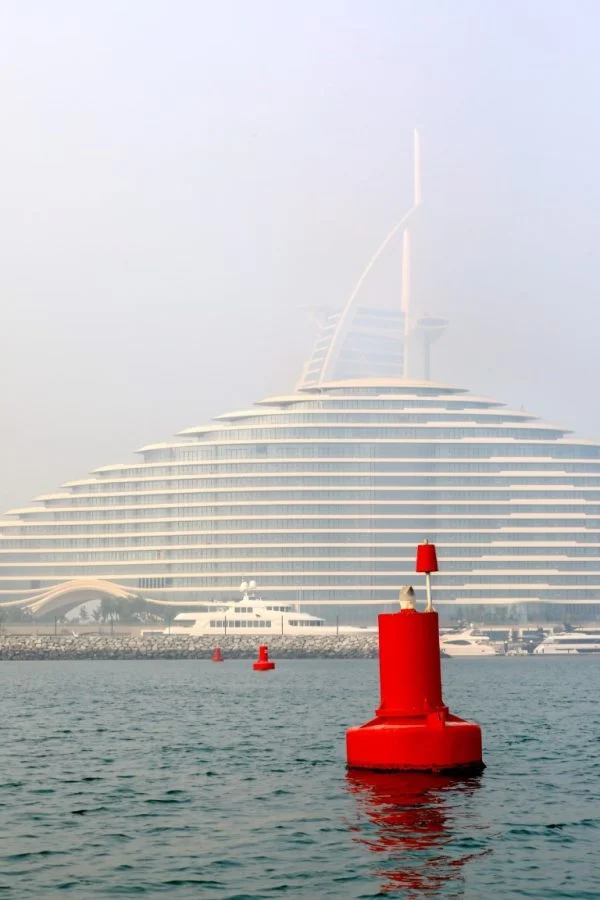

The Tritonbuoys TM1500 is a highly durable, high-visibility navigational aid suitable for various applications, such as lateral marking, barricading, special marking, and cardinal marking. Its internal steel components are made from stainless steel, enhancing both its longevity and strength. The TM-B1500 has been designed with a high visual/focal area ensuring outstanding visibility even from long distances.

Features

  • Excellent buoyancy and stability.
  • High visual/focal area.
  • Double lifting and mooring eye.
  • Easy assembly and installation.
  • 316-grade tie in bars provide outstanding strength.

Specifications

General Characteristics
Diameter1500 mm
Focal Plane Height1638 mm
Available ColourGreen, Red, Yellow, White as per IALA recommendations; Customisation Available
Total Float Volume1238 L / Excluding top section
Nominal Freeboard565 mm
Nominal Draft562 mm
Total Reserve Buoyancy850 kg
Operational Buoyancy420 kg
Maximum Mooring Load420 kg
Draft, Maximum788 mm
Freeboard, Minimum337 mm
Visual/Focal Area1.6 m2
Physical Characteristics
MaterialRotationally-Moulded UV Stabilized Virgin Polyethylene
Wall Thickness10 mm Buoy Section; 7 mm Top Section
Ballast (Internal Concrete)280 kg (Customisable)
FillingClosed cell Polyurethane (Density > 45 kg/m3)
Total Height2220 mm
Width1500 mm
Mass435 kg (including internal ballast)
Certifications
IALASurface colours compliant to IALA E-108
Quality AssuranceISO 9001:2015
IP/TrademarkTRITONBUOYS® is a registered trademark
Additional Characteristics
Warranty3 Years**
Options AvailableSignage, In-Mold &/or Post Mold Stickers, Top Marks, Internal Radar Reflector, Battery Box, Navigation Lights
* Specifications subject to change or variation without notice
** Warranty subject to terms & conditions
