Navigation Buoy TM-B1800

North West Marine offers an extensive portfolio of navigation buoys designed in compliance with strict quality standards and validated by a strong history of reliability. Tritonbuoys has developed a diverse selection of navigation buoys that adhere to rigorous quality standards and boast a proven track record of reliability. Each buoy is crafted from premium UV-stabilized virgin polyethylene and filled with closed-cell polyurethane to prevent water ingress if the outer layer is damaged. This design ensures exceptional performance and long-lasting durability.

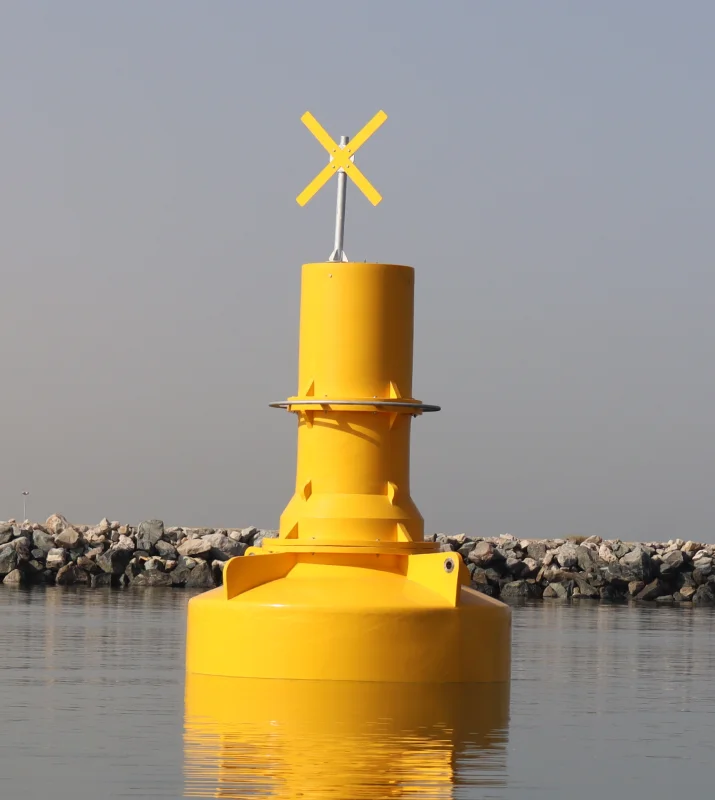

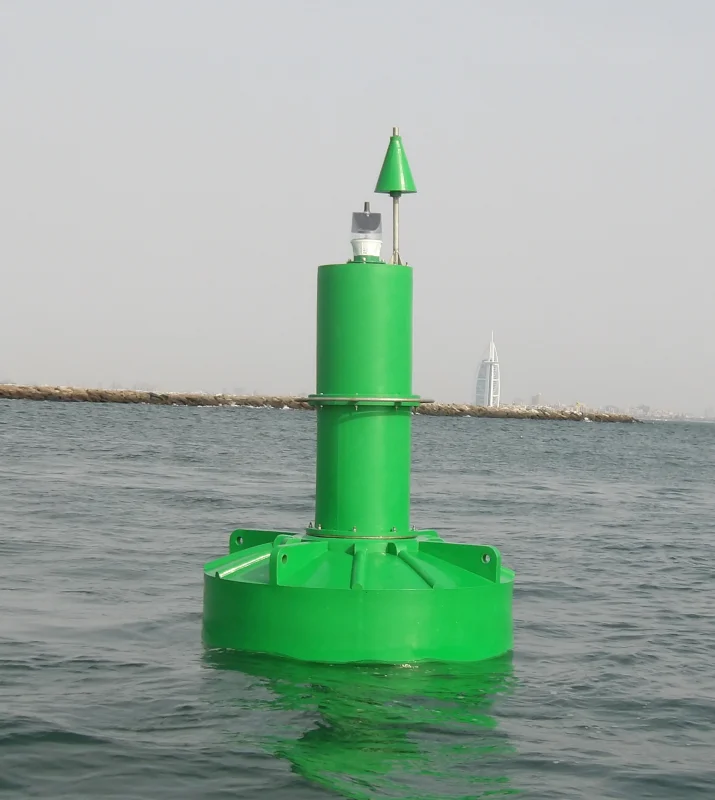

The Tritonbuoys TM1800 is a highly durable, high-visibility navigational aid suitable for various applications, such as lateral marking, special marking, and cardinal marking. Its internal steel components are made from stainless steel, enhancing both its longevity and strength. The TM1800 is constructed in multiple segments to allow for easy transportation,assembly, servicing and partial replacements where necessary.

Features

  • Excellent buoyancy and stability.
  • High visual/focal area.
  • Double lifting and mooring eye.
  • Easy assembly and installation.
  • 316-grade tie in bars provide outstanding strength.

Specifications

General Characteristics
Diameter1800 mm
Focal Plane Height2383 mm
Available ColourGreen, Red, Yellow, White as per IALA recommendations; Customisation Available
Total Float Volume2248 L / Excluding top section
Nominal Freeboard813 mm
Nominal Draft567 mm
Total Reserve Buoyancy1750 kg
Operational Buoyancy890 kg
Maximum Mooring Load890 kg
Draft, Maximum900 mm
Freeboard, Minimum480 mm
Visual/Focal Area2.195 m2
Physical Characteristics
MaterialRotationally-Moulded UV Stabilized Virgin Polyethylene
Wall Thickness12 mm Buoy Section; 7 mm Top Section
Ballast (Internal Concrete)380 kg (Customisable)
FillingClosed cell Polyurethane (Density > 45 kg/m3)
Total Height2950 mm
Width1800 mm
Mass610 kg (including internal ballast)
Certifications
IALASurface colours compliant to IALA E-108
Quality AssuranceISO 9001:2015
Warranty3 Years**
IP/TrademarkTRITONBUOYS® is a registered trademark
Options Available
Marine LanternsAvailable
Customised ConfigurationAvailable
Day MarksAvailable
Internal Radar ReflectorAvailable
Battery BoxAvailable
* Specifications subject to change or variation without notice
** Warranty subject to terms & conditions
