Navigation Buoy TM1200

North West Marine offers an extensive portfolio of navigation buoys designed in compliance with strict quality standards and validated by a strong history of reliability. Tritonbuoys has developed a diverse selection of navigation buoys that adhere to rigorous quality standards and boast a proven track record of reliability. Each buoy is crafted from premium UV-stabilized virgin polyethylene and filled with closed-cell polyurethane to prevent water ingress if the outer layer is damaged. This design ensures exceptional performance and long-lasting durability.

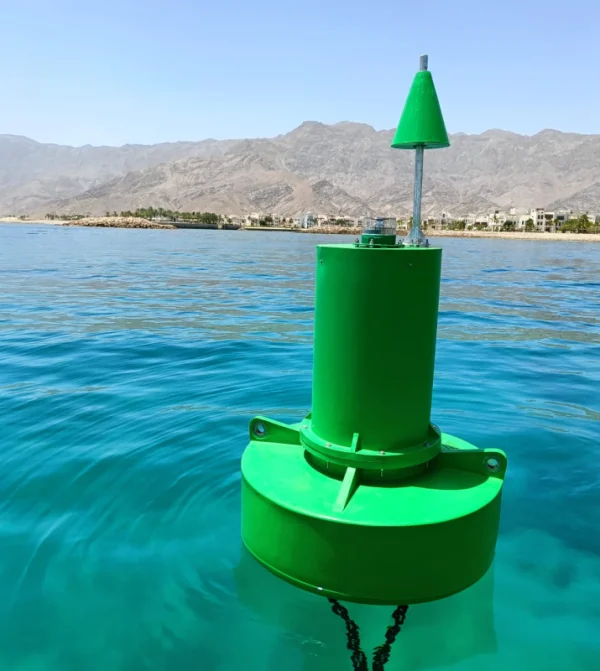

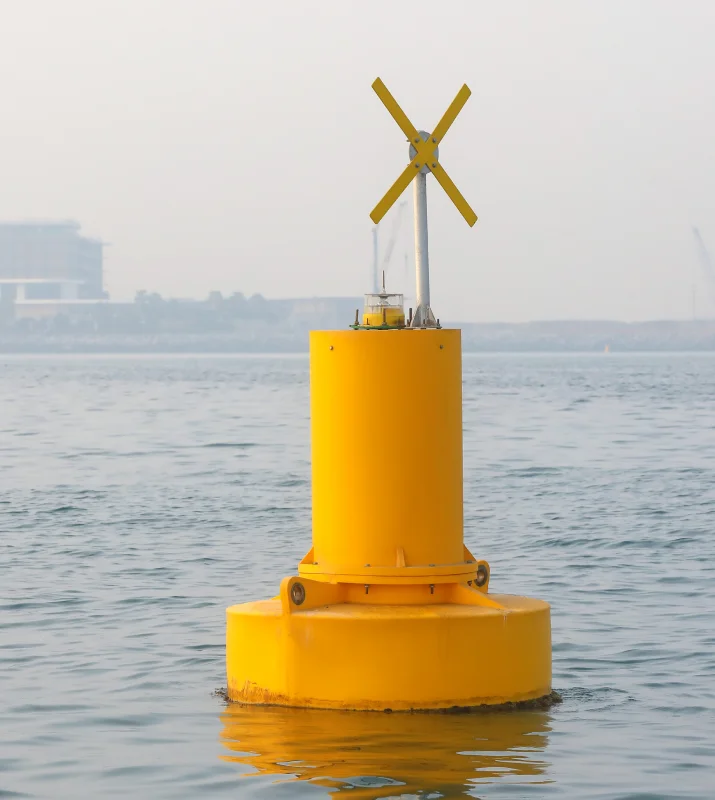

The Tritonbuoys navigation buoy TM1200 is an extremely robust high visibility 1200mmm diameter navigational buoy perfect for a variety of installations including lateral marking, barricading, special marking and cardinal marking.

Features

  • Excellent buoyancy and stability.
  • Optional top section with extended focal height.
  • Double lifting and mooring eye.
  • Easy assembly and installation.
  • 316-grade tie in bars provide outstanding strength.

Specifications

General Characteristics
Diameter1200 mm
Focal Plane Height1445 mm
Available ColourGreen, Red, Yellow, White as per IALA recommendations; Customisation Available
Total Float Volume590 L / Excluding top section
Nominal Freeboard415 mm
Nominal Draft475 mm
Total Reserve Buoyancy464 kg
Operational Buoyancy285 kg
Maximum Mooring Load285 kg
Freeboard, Minimum215 mm
Draft, Maximum675 mm
Visual/Focal Area0.85 m2
Physical Characteristics
MaterialRotationally-Moulded UV Stabilized Virgin Polyethylene
Wall Thickness9 mm Buoy Section; 7 mm Top Section
Ballast (Internal Concrete)60 kg (Customisable)
FillingClosed cell Polyurethane (Density > 45 kg/m3)
Total Height1800 mm / 2100 mm Extended Version
Width1200 mm
Mass145 kg (including internal ballast)
Certifications
IALASurface colours compliant to IALA E-108
Quality AssuranceISO 9001:2015
IP/TrademarkTRITONBUOYS® is a registered trademark
Additional Characteristics
Warranty3 Years**
Options AvailableSignage, In-Mold &/or Post Mold Stickers, Top Marks, Internal Radar Reflector, Battery Box, Navigation Lights
* Specifications subject to change or variation without notice
** Warranty subject to terms & conditions
