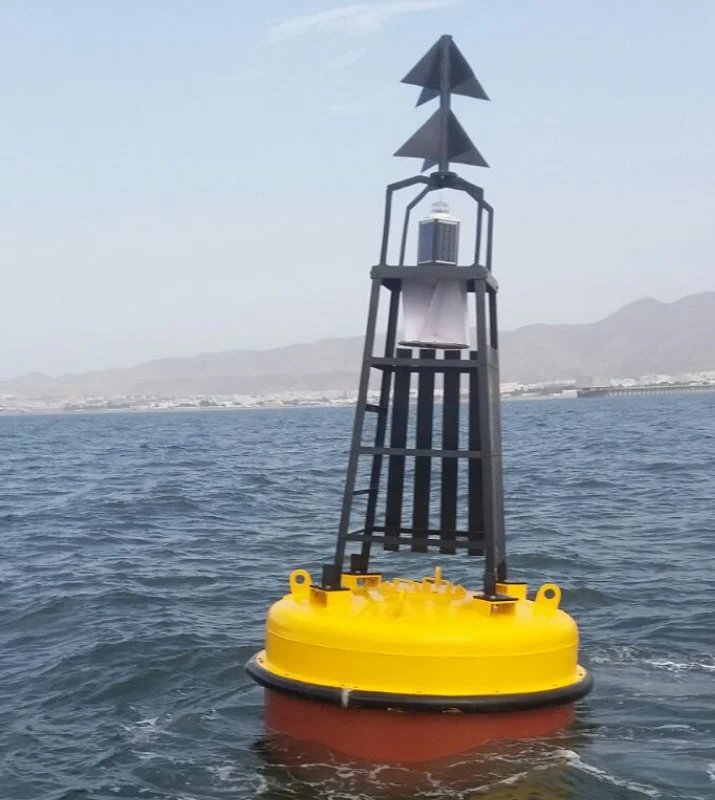

Steel Navigation Buoys TM Series

North West Marine offers an extensive portfolio of navigation buoys designed in compliance with strict quality standards and validated by a strong history of reliability. Tritonbuoys manufacture a diverse selection of steel navigation buoys, ranging from 1m to 4.5m in diameter, with focal planes reaching up to 8m. Each buoy can be highly customized to meet specific needs.

Tritonbuoys steel navigation buoys are crafted from high-grade steel by skilled welders, ensuring top-notch quality. Each buoy is also coated with premium marine coatings to maximize durability and extend service life.

Features

  • Made from high grade steel.
  • Customization possible to meet customer requirements and designs.
  • Excellent buoyancy and stability.
  • Easy deployment and assembly.

Specifications

General Characteristics
Diameter1m to 4.5m
Focal Plane HeightCustomised to customer requirements
MaterialMild Steel S275JR, A36 or other grades based on customer requirements
Wall Thickness> 6mm Customisable
Galvanizing (Tower section)85 Microns DFT (or greater based on customer requirements)
PaintingHigh quality marine paint 450 microns DFT (or specifications based on customer requirements)
Lifting Eyes4 nos
Mooring Eyes4 nos
FenderRubber “D” Fender
BallastConcrete and/or Steel
ColoursGreen, Red, Yellow, White as per IALA; Customisation Available
Options Available
Day MarksAvailable
Navigation LanternsAvailable
Radar ReflectorAvailable
Mooring SystemAvailable
* Specifications subject to change or variation without notice
** Warranty subject to terms & conditions
