Features
- Excellent buoyancy and stability.
- Made from multiple components.
- Double lifting and mooring eye.
- Easy assembly and installation.
- 316-grade tie in bars provide outstanding strength.

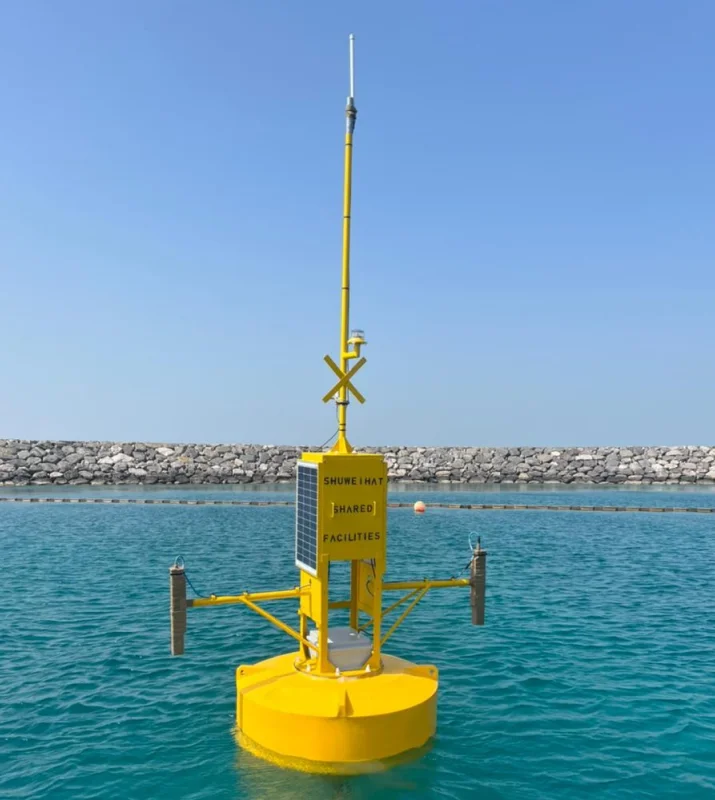

Meteorological Buoys
North West Marine offers an extensive portfolio of navigation buoys designed in compliance with strict quality standards and validated by a strong history of reliability. Tritonbuoys has the ability to customize our range of buoys to suit meteorological applications allowing for the installation of additional sensors such as water quality, turbidity, power components.
Specifications
| TM MB 1200 | TM MB 1500 | TM MB 1800 | TM MB 2400 | |
|---|---|---|---|---|
| Diameter | 1200 mm | 1500 mm | 1800 mm | 2400 mm |
| Available Colour | Green, Red, Yellow, White as per IALA recommendations; Customisation Available. | |||
| Nominal Freeboard | 415 mm | 545 mm | 660 mm | 900 mm |
| Nominal Draft | 475 mm | 525 mm | 580 mm | 700 mm |
| Operational Buoyancy | 285 kg | 520 kg | 840 kg | 1830 kg |
| Monitoring Eq. Capacity | 80 kg | 140 kg | 225 kg | 400 kg |
| Draft, Maximum | 675 mm | 725 mm | 900 mm | 1100 kg |
| Freeboard, Minimum | 215 mm | 345 mm | 340 mm | 500 mm |
| Physical Characteristics | ||||
| Material | Rotationally-Moulded UV Stabilized Virgin Polyethylene | |||
| Wall Thickness | 9 mm | 12 mm | 12 mm | 14 mm |
| Ballast (Concrete) | 60 kg (Customisable) | 350 kg (Customisable) | 380 kg (Customisable) | 600 kg (Customisable) |
| Filling | Closed cell Polyurethane (Density > 45kg/m³) | |||
| Base Buoy Height | 900 mm | 1070 mm | 1240 mm | 1600 mm |
| Mass (Incl. mooring rod) | 145 kg (w/o mooring rod) | 585 kg | 650 kg | 1070 kg |
| Certifications | ||||
| Quality Assurance | ISO9001:2015 | |||
| Warranty | 3 Years** | |||
| IP/Trademark | TRITONBUOYS® is a registered trademark | |||
| Options Available | ||||
| Custom Configuration as per client requirements, Top section supply & modification | ||||
| * Specifications subject to change or variation without notice ** Warranty subject to terms & conditions | ||||
Downloads
