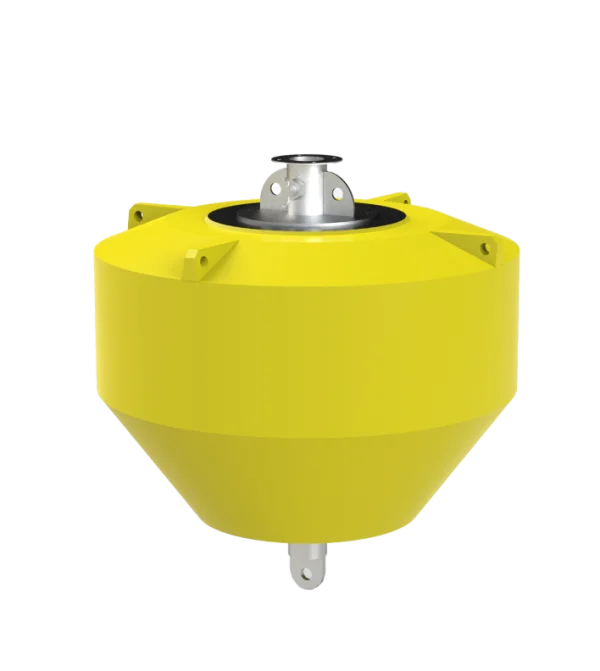

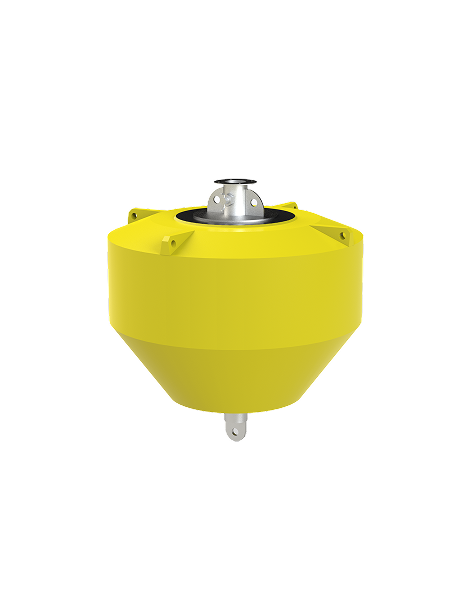

Mooring Buoys 1500

North West Marine offers an extensive portfolio of navigation buoys designed in compliance with strict quality standards and validated by a strong history of reliability. Tritonbuoys has developed a diverse selection of mooring buoys that adhere to rigorous quality standards and boast a proven track record of reliability. Each buoy is manufactured from premium UV-stabilized virgin polyethylene and filled with closed-cell polyurethane to prevent water ingress in the event of damage.

Tritonbuoys mooring buoys feature a robust molded center pipe, specifically designed to facilitate the easy installation of mooring tubes and chains. This design enhanes the functionality and versatility of the buoys, making them ideal for various mooring applications.

Features

  • Excellent buoyancy and stability.
  • Sturdy construction.
  • Range of sizes available.
  • Easy assembly and installation.

Specifications

TM MB 1500
Diameter1500 mm
Available ColourGreen, Red, Yellow, White as per IALA recommendations; Customisation Available.
Total Float Volume1495 L
Nominal Freeboard545 mm
Nominal Draft525 mm
Total Reserve Buoyancy895 kg
Operational Buoyancy520 kg
Maximum Mooring Load520 kg
Draft, Maximum725 mm
Freeboard, Minimum345 mm
Physical Characteristics
MaterialRotationally-Moulded UV Stabilized Virgin Polyethylene
Wall Thickness12mm Buoy Section; 7mm Top Section
Ballast (Internal Concrete)350 kg (Customisable)
FillingClosed cell Polyurethane (Density > 45kg/m³)
Total Height1070 mm
Width1500 mm
Mass585 kg (including ballast & mooring rod)
Certifications
IALASurface colours compliant to IALA E-108
Quality AssuranceISO9001:2015
Warranty3 Years**
IP/TrademarkTRITONBUOYS® is a registered trademark
Options Available
Custom Mooring Rod, Custom Signage, Internal Radar Reflector, Navigation/Signal Lights, Pickup Buoy
* Specifications subject to change or variation without notice
** Warranty subject to terms & conditions
