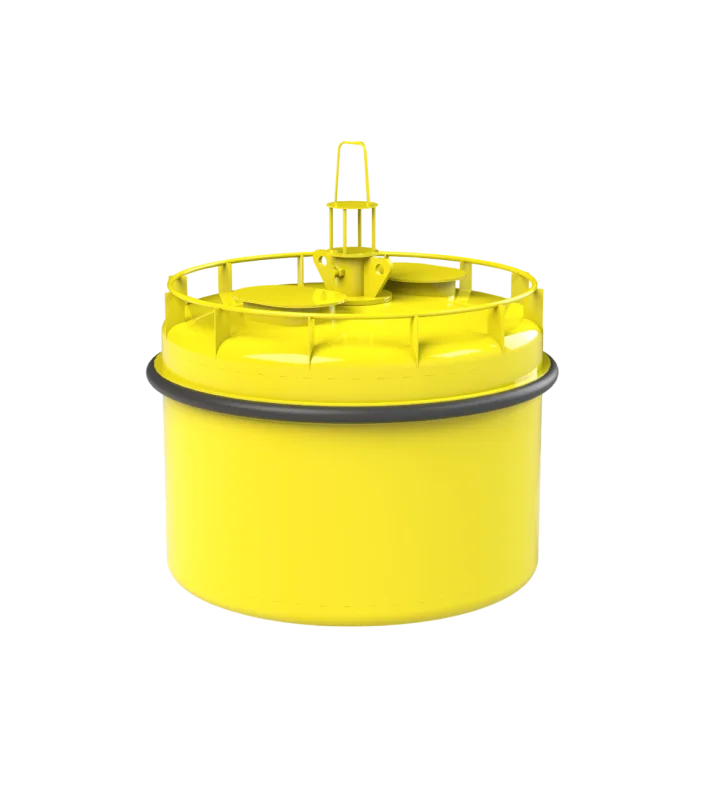

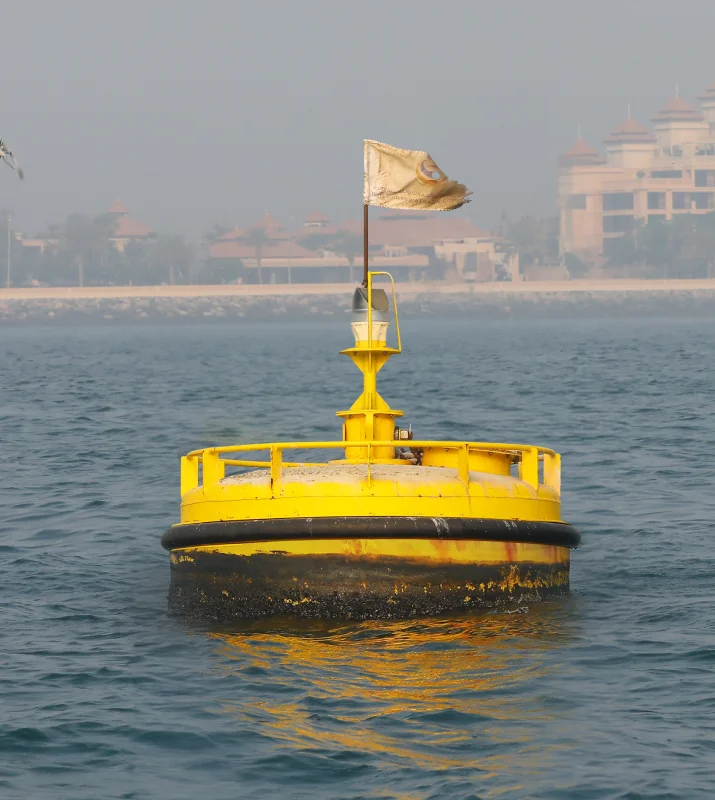

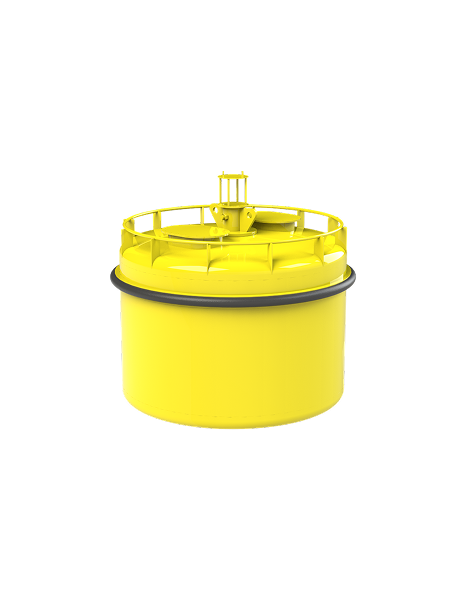

Steel Mooring Buoys

North West Marine offers an extensive portfolio of navigation buoys designed in compliance with strict quality standards and validated by a strong history of reliability. Tritonbuoys steel mooring buoys are meticulously crafted from high-grade steel by expert welders, guaranteeing superior quality. Each buoy is coated with premium marine coatings to enhance durability and extend service life.

Features

Excellent buoyancy and stability.
Sturdy construction.
Range of colours.
Easy assembly and installation.

Specifications

	Steel Navigation Buoy
Diameter	1m to 4.5m
Focal Plane Height	Customised to customer requirements
Material	Mild Steel S275JR, A36 or other grades based on customer requirements
Wall Thickness	>8 mm Customisable; Mooring Rod >20 mm Customisable
Painting	High quality marine paint 450 microns DFT or specifications based on customer requirements
Lifting Eyes	4 nos
Mooring Eyes	4 nos
Fender	Rubber “D” Fender
Ballast	Concrete and/or Steel
Colours	Green, Red, Yellow, White as per IALA; Customisation Available.
Options Available
Pick Up Buoy, Navigation Lanterns, Radar Reflector, Mooring System
* Specifications subject to change or variation without notice ** Warranty subject to terms & conditions
