Signage Buoy TM 620

North West Marine offers an extensive portfolio of navigation buoys designed in compliance with strict quality standards and validated by a strong history of reliability. Tritonbuoys has developed a diverse selection of navigation buoys that adhere to rigorous quality standards and boast a proven track record of reliability. Each buoy is crafted from premium UV-stabilized virgin polyethylene and filled with closed-cell polyurethane to prevent water ingress if the outer layer is damaged. This design ensures exceptional performance and long-lasting durability.

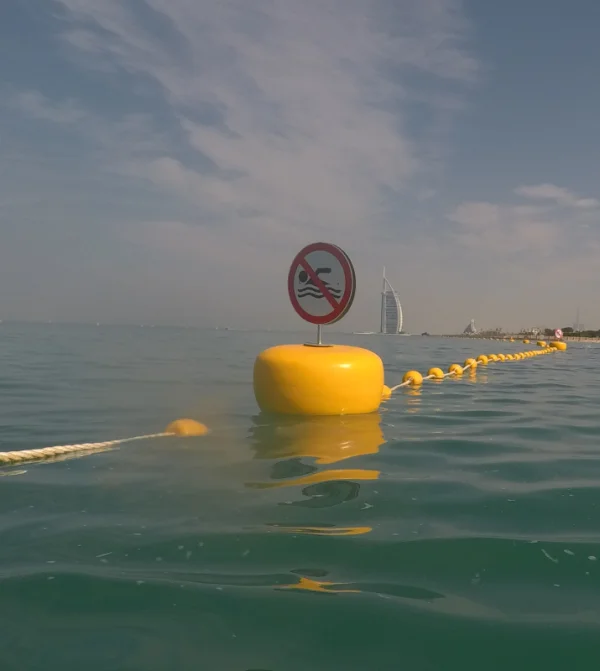

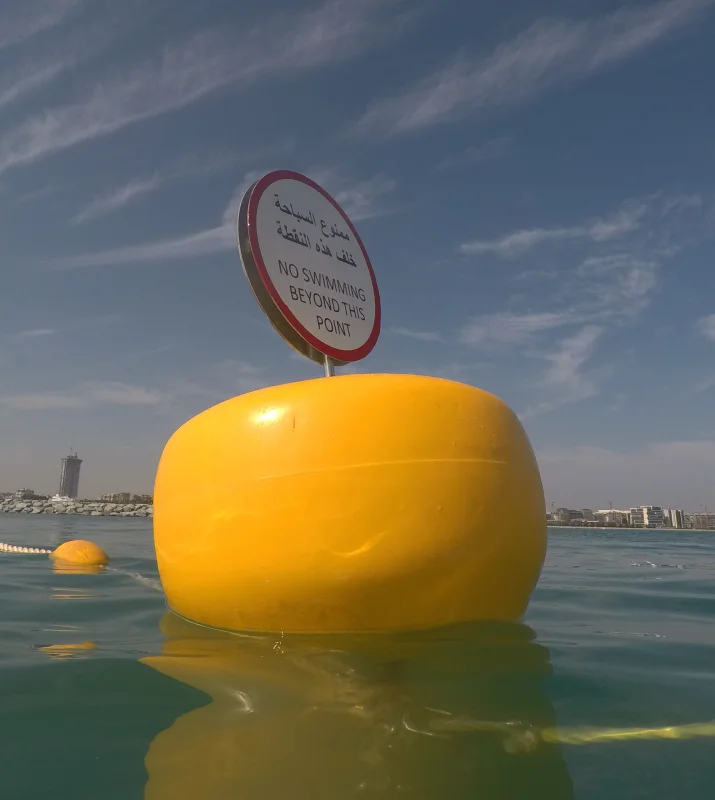

The TM620 marker/ signage buoy is designed primarily for lateral marking, marina identification, speed zone, restricted area and day-and-night channel marking. Its compact size and short-range functionality make it easy to install and highly practical.

Features

High visibility colours and sign design.
Manufactured in the UAE.
Excellent buoyancy and stability.
Custom signage options.

Specifications

General Characteristics
Diameter	620 mm
Available Colour	Green, Red, Yellow, White as per IALA; Customisation Available
Freeboard, Minimum	325 mm
Draft, Maximum	325 mm
Maximum Mooring Load	57 kg
Physical Characteristics
Material	Rotationally-Moulded UV Stabilized Virgin Polyethylene
Wall Thickness	6 mm
Ballast (Internal Concrete)	20 kg (Customisable)
Filling	Closed cell Polyurethane (Density > 45 kg/m³)
Total Height	650 mm
Net Weight	35 kg (including internal ballast)
Certifications
Quality Assurance	ISO 9001:2015
Warranty	1 Year**
IP/Trademark	TRITONBUOYS® is a registered trademark
Options Available
Options	In-Mold &/or Post Mold Stickers, Navigation Light
* Specifications subject to change or variation without notice ** Warranty subject to terms & conditions
